Option:
Suitable for oxygen
Coating with epoxy resin in RAL colours
Gonzo-Nose (insect protection for outdoor installation)
Helium leak test for hydrogen applications
Throttle valve (RSD) for the breathing port on SSV
Acceptance test certificate (ATC) to EN 10204 3.1
Assembly kit (threaded rods, washers, nuts)
High-pressure screw spindle (HDS) for convenient and accurate setting of the regulator despite high spring forces
Safety diaphragm (SM) for the control device
Noise reduction equipment
Coating with epoxy resin in RAL colours
Gonzo-Nose (insect protection for outdoor installation)
Helium leak test for hydrogen applications
Throttle valve (RSD) for the breathing port on SSV
Acceptance test certificate (ATC) to EN 10204 3.1
Assembly kit (threaded rods, washers, nuts)
High-pressure screw spindle (HDS) for convenient and accurate setting of the regulator despite high spring forces
Safety diaphragm (SM) for the control device
Noise reduction equipment
|
Inlet pressure Pu: |
max. 8 bar |
|
Outlet pressure Pd: |
18-3,000 mbar |
|
PS: |
<Pu |
|
Ambient temperature: |
-20 to +60 °C |
|
Mounting position: |
any |
|
SSV Pdso: |
50-14,000 mbar |
|
SSV Pdsu: |
5-1,000 mbar |
|
Housing material: |
aluminium sand cast |
|
Flange standard: |
DIN 1092-PN 16 or ASME B 16.5-Class 150 |
|
Gas specification: |
gas families 1, 2, 3 (DVGW - G 260) and non-aggressive gases. Other gases on request. |
|
Nominal size: |
Valve diameter(mm): |
KG-value【 m³/(h*bar)】 |
|
DN-25 |
17.5 | 200 |
|
DN-25 |
27.5 | 420 |
|
DN-50 |
17.5 | 220 |
|
DN-50 |
27.5 | 500 |
|
DN-50 |
32.5 | 750 |
|
DN-80 |
27.5 | 550 |
|
DN-80 |
32.5 | 850 |
|
DN-80 |
42.5 | 1,450 |
|
DN-100 |
27.5 | 600 |
|
DN-100 |
32.5 | 900 |
|
DN-100 |
42.5 | 1,500 |
|
DN-100 |
52.5 | 1,800 |
|
DN-150 |
42.5 | 1,600 |
|
DN-150 |
52.5 | 2,000 |
|
DN-150 |
65.0 | 3,500 |
|
DN-150 |
85.0 | 4,680 |
|
DN-150 |
95.0 | 5,800 |
|
DN-200 |
95.0 | 6,100 |
|
DN-200 |
115.0 | 8,950 |
|
Nominal size: |
Descripition |
Outlet pressure range(mbar) |
With high-pressure screw spindle (hds-option) [mbar] |
|
DN 25 |
with RE 330 | 18-200 | 200-800 |
|
DN 25 |
with RE 205 | 200-750 | 750-3,000 |
|
DN 50 |
with RE 330 | 18-200 | 200-800 |
|
DN 50 |
with RE 205 | 200-750 | 750-3,000 |
|
DN 80 |
with RE 390 | 18-130 | 130-450 |
|
DN 80 |
with RE 275 | 130-400 | 400-1,100 |
|
DN 80 |
with RE 205 | 400-750 | 750-3,000 |
|
DN 100 |
with RE 390 | 18-130 | 130-450 |
|
DN 100 |
with RE 275 | 130-400 | 400-1,100 |
|
DN 100 |
with RE 205 | 400-750 | 750-3,000 |
|
DN 150 |
with RE 485 | 18-150 | 150-450 |
|
DN 150 |
with RE 385 | 150-350 | 350-850 |
|
DN 150 |
with RE 275 | 350-850 | 850-3,000 |
|
DN 200 |
with RE 485 | 18-150 | 150-450 |
|
DN 200 |
with RE 385 | 150-350 | 350-850 |
|
DN 200 |
with RE 275 | 350-850 | 850-3,000 |

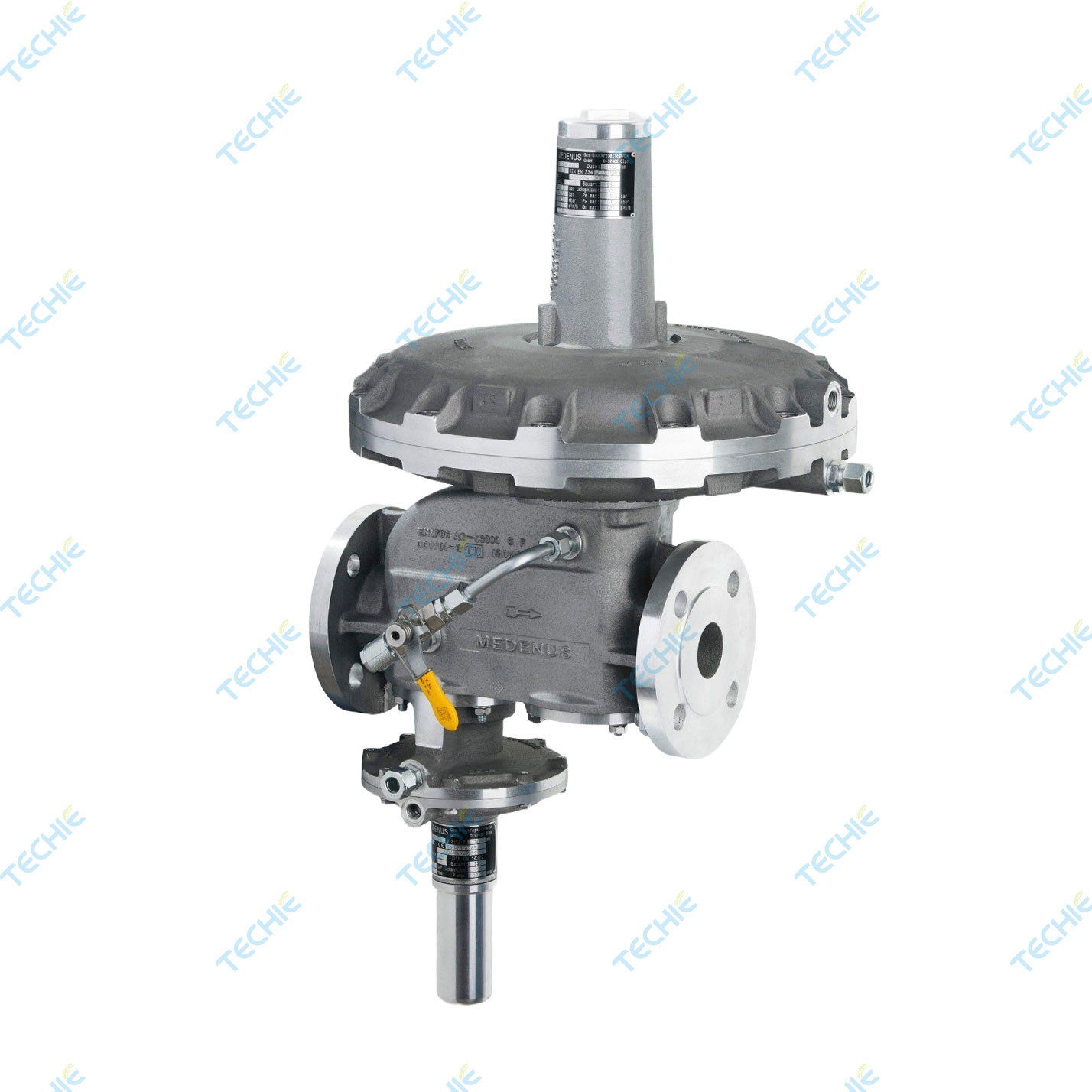

The spring-loaded gas pressure regulators RS 250 have the function of keeping the outlet pressure of a gaseous medium constant within allowable limit values, independently of the effect of interferences, such as changes in the inlet pressure and/or in the gas flow, in the connected regulating line on the outlet side.
