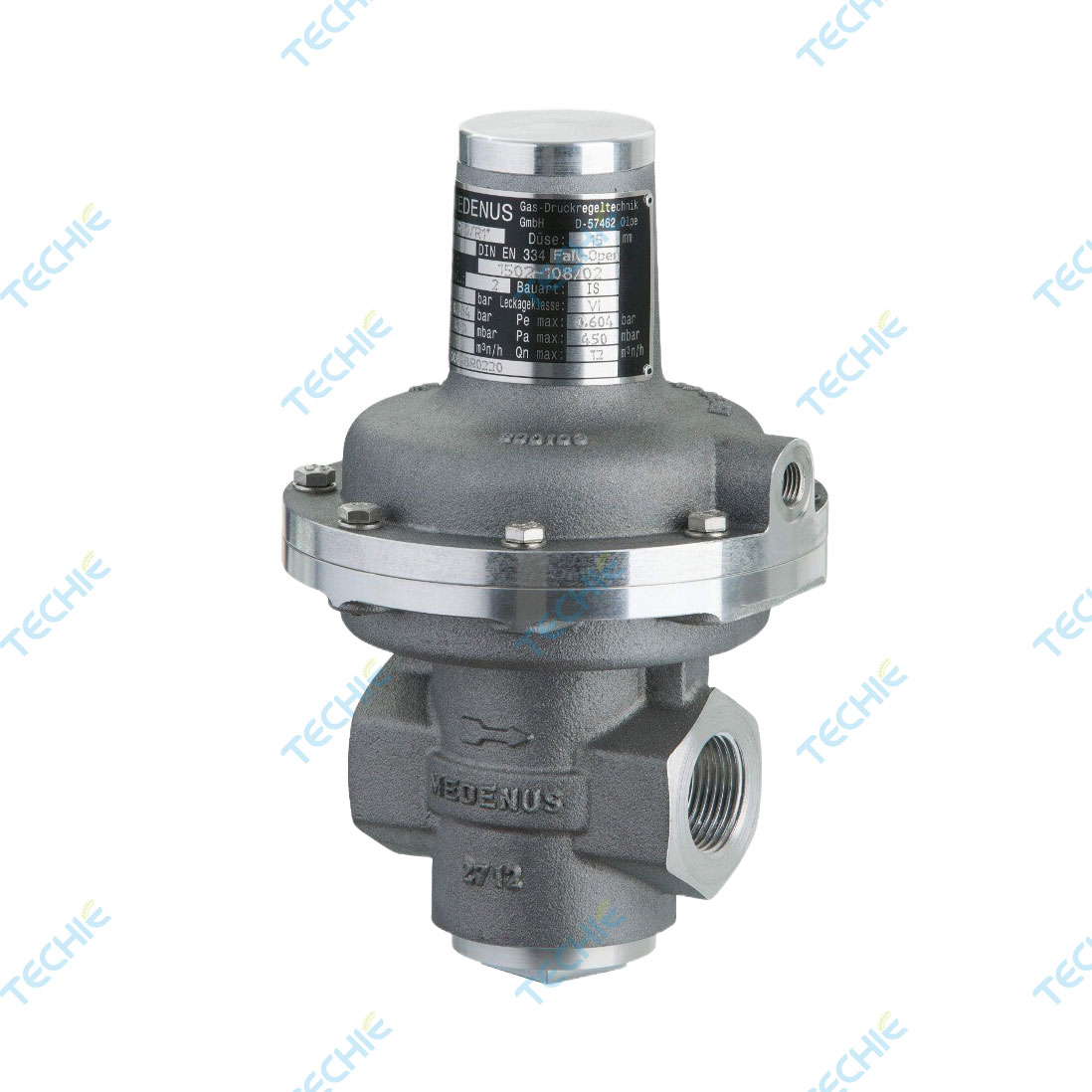

Gas pressure regulator R50

The spring-loaded gas pressure regulator R 50 has the function of keeping the outlet pressure of a gaseous medium constant within allowable limit values.

    Option:

    Suitable for oxygen
    Vent valve (BV) for breather connection (for non-dynamic applications)
    Coating with epoxy resin in RAL colours
    Acceptance test certificate (ATC) to EN 10204 3.1
    Gonzo-Nose (insect protection for outdoor installation)
    Helium leak test for hydrogen applications
    NPT thread on demand

    How to choose gas pressure regulator:

    Determine the required flow rate
    Select a size that can handle the required flowrate
    Select the version of the valve that can do the required outlet pressure
    Select any options you require
    When ordering please advise the direction of the gas flow (from right to left or left to right)




    Inlet pressure Pu:

    max. 3 bar

    Outlet pressure Pd:

    200 mbar - 1.200 mbar

    RP 1": Q max:

    100 Nm³/h

    RP 1½"; RP 2": Q max:

    300 Nm³/h

    PS:

    5 bar

    Ambient temperature:

    -20 to +60 °C

    Housing material:

    aluminium sand cast

    Approval:

    according to PED

    Gas specification:

    gas families 1, 2, 3 (DVGW - G 260) and non-aggressive gases. Other gases on request.

    Valve diameter (mm):

    11.0/15.0/20.0(DN 25 RP 1")
    15.0/25.0(DN 40 RP 1½"/DN 50 RP 2")

    Outlet pressure range (mbar):

    200 - 400(DN 25 RP 1"/DN 40 RP 1½"/DN 50 RP 2",Standard)

    Outlet pressure range (mbar):

    401 - 1,000(DN 25 RP 1"/DN 40 RP 1½"/DN 50 RP 2",High-pressure version)

    Outlet pressure range (mbar):

    1,001 - 1,200(DN 25 RP 1"/DN 40 RP 1½"/DN 50 RP 2",High-pressure version with HDS)

    The spring-loaded gas pressure regulator R 50 has the function of  keeping the outlet pressure of a gaseous medium constant within allowable limit values.
